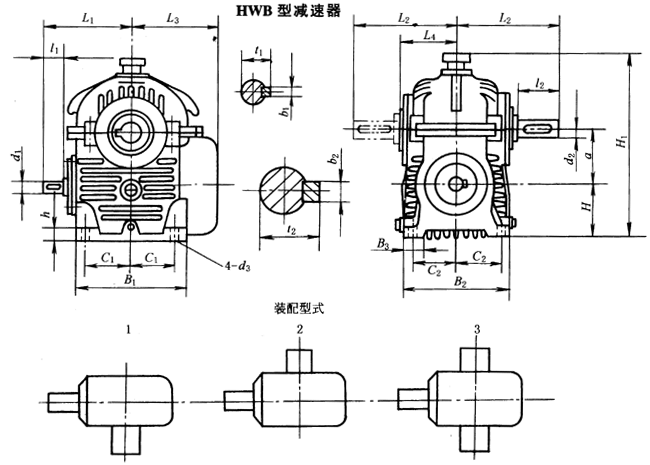

HWB型减速器外形、安装尺寸及装配型式JB/T7936—1999mm
型 号
|
a
|
B1
|
B2
|
B3
|
C1
|
C2
|
H
|
d1
|
l1
|
b1
|
t1
|
L1
|
HWB100
|
100
|
250
|
220
|
50
|
100
|
90
|
100
|
28js6
|
60
|
8
|
31
|
220
|
HWB125
|
125
|
280
|
260
|
60
|
115
|
105
|
125
|
35k6
|
80
|
10
|
38
|
260
|
HWB160
|
160
|
380
|
310
|
70
|
155
|
130
|
160
|
45k6
|
110
|
14
|
48.5
|
340
|
HWB200
|
200
|
450
|
360
|
80
|
185
|
150
|
180
|
55m6
|
110
|
16
|
59
|
380
|
HWB250
|
250
|
540
|
430
|
90
|
225
|
180
|
200
|
65m6
|
140
|
18
|
69
|
460
|
HWB280
|
280
|
640
|
500
|
110
|
270
|
210
|
225
|
75m6
|
140
|
20
|
79.5
|
530
|
HWB315
|
315
|
700
|
530
|
120
|
280
|
225
|
250
|
80m6
|
170
|
22
|
85
|
590
|
HWB355
|
355
|
750
|
560
|
130
|
300
|
245
|
280
|
85m6
|
170
|
22
|
90
|
610
|
HWB400
|
400
|
840
|
620
|
140
|
315
|
260
|
315
|
95m6
|
170
|
25
|
100
|
660
|
HWB450
|
450
|
930
|
700
|
150
|
355
|
300
|
355
|
100m6
|
210
|
28
|
106
|
740
|
HWB500
|
500
|
1020
|
760
|
170
|
400
|
320
|
400
|
110m6
|
210
|
28
|
116
|
790
|
型 号
|
d2
|
l2
|
b2
|
t2
|
L2
|
L3
|
L4
|
H1
|
h
|
d3
|
油量/L
|
重量/kg
|
HWB100
|
50k6
|
82
|
14
|
53.5
|
220
|
220
|
120
|
373
|
25
|
16
|
3
|
70
|
HWB125
|
60m6
|
82
|
18
|
64
|
240
|
260
|
142
|
445
|
30
|
20
|
4
|
132
|
HWB160
|
75m6
|
105
|
20
|
79.5
|
310
|
320
|
177
|
560
|
35
|
24
|
8
|
170
|
HWB200
|
90m6
|
130
|
25
|
95
|
350
|
380
|
192
|
655
|
40
|
24
|
13
|
280
|
HWB250
|
110m6
|
165
|
28
|
116
|
430
|
440
|
230
|
800
|
45
|
28
|
21
|
475
|
HWB280
|
120m6
|
165
|
32
|
127
|
470
|
530
|
255
|
910
|
50
|
35
|
27
|
725
|
HWB315
|
130m6
|
200
|
32
|
137
|
500
|
555
|
260
|
963
|
55
|
35
|
35
|
1030
|
HWB355
|
140m6
|
200
|
36
|
148
|
530
|
590
|
300
|
1082
|
60
|
35
|
48
|
1590
|
HWB400
|
150m6
|
200
|
36
|
158
|
560
|
655
|
310
|
1230
|
70
|
42
|
60
|
2140
|
HWB450
|
170m6
|
240
|
40
|
179
|
640
|
705
|
360
|
1375
|
75
|
42
|
85
|
2510
|
HWB500
|
180m6
|
240
|
45
|
190
|
670
|
775
|
390
|
1510
|
80
|
42
|
110
|
3370
|
